TRACE: Transparency Certified

Lars Vilhuber et al.

2026-06-03

Follow along

transparency-certified.github.io/trace-sivacor-presentation-2026/

The Problem

Computational Reproducibility in the Social Sciences

  • Research communities increasingly require sharing of data, code, and methods
  • Trend is clear: any data that can reasonably be shared, and all code, should be made available
  • Consumers combine data and code, re-run it, and validate the analysis

Computational Reproducibility in the Social Sciences

But what makes this hard in practice?

  • Data withheld for ethical, legal, or contractual reasons

Computational Reproducibility in the Social Sciences

But what makes this hard in practice?

  • Data withheld for ethical, legal, or contractual reasons
  • Processing is time-consuming or requires rare computing resources

Computational Reproducibility in the Social Sciences

But what makes this hard in practice?

  • Data withheld for ethical, legal, or contractual reasons
  • Processing is time-consuming or requires rare computing resources
  • Raw data may be transient, ephemeral, or deleted

Recent Evidence

A 2026 issue of Nature on social science reproducibility:

  • Headline: “Half of social-science studies fail replication test”
    • But: only 30% of articles yielded data

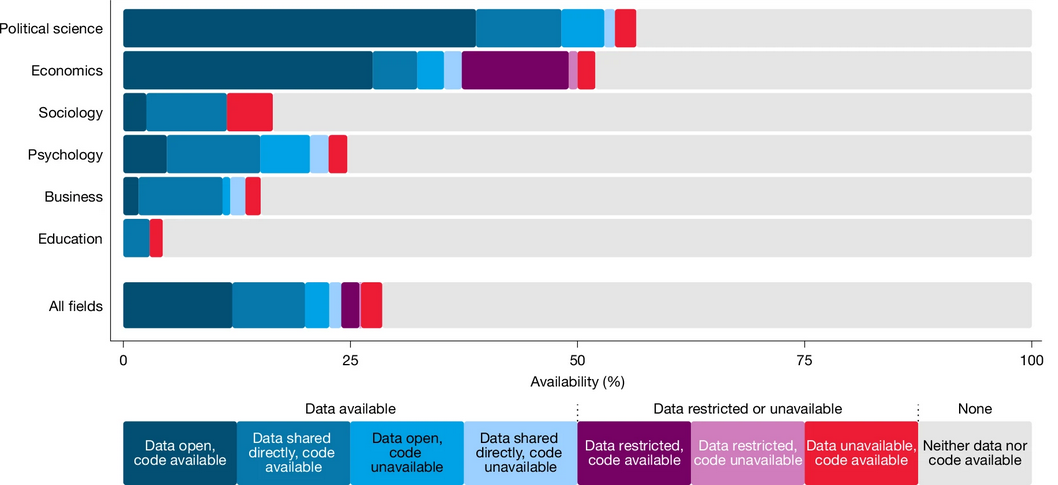

Fig 2, Tyne et al. (2026)

Recent Evidence

A 2026 issue of Nature on social science reproducibility:

  • Headline: “Half of social-science studies fail replication test”
    • But: only 30% of articles yielded data; only 24% were attempted

Fig 2, Tyne et al. (2026)

Recent Evidence

A 2026 issue of Nature on social science reproducibility:

  • Headline: “Half of social-science studies fail replication test”
    • But: only 30% of articles yielded data; only 24% were attempted
    • 74% of those attempted were exactly or approximately reproducible

Fig 2, Tyne et al. (2026)

Enormous effort

A 2026 issue of Nature on social science reproducibility:

  • Brodeur et al. (2026), crowdsourced with Sloan funding:
    • 85% of 110 articles (2022–2023) were reproducible
    • Required 80 replication games and 3,500+ researchers

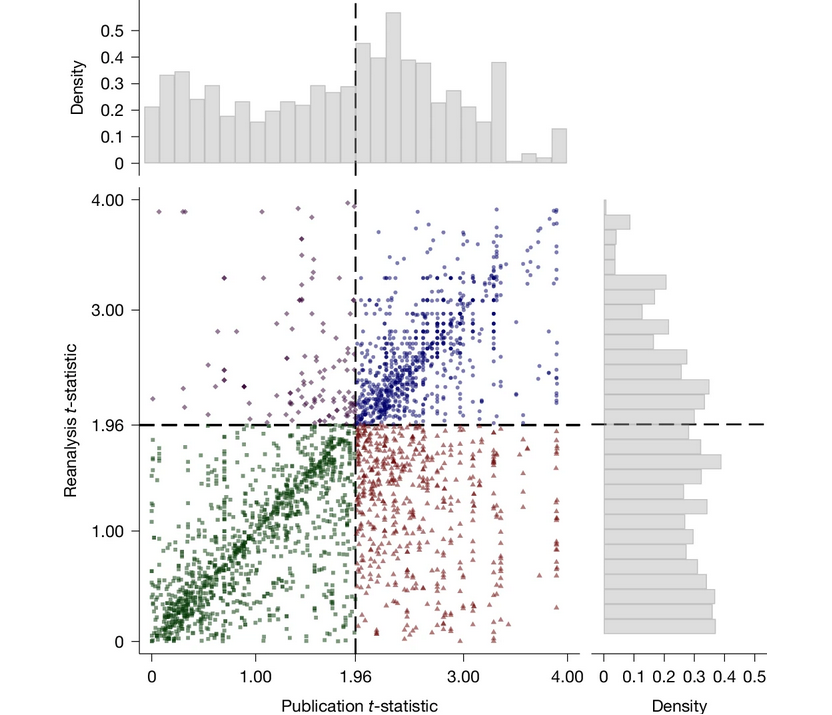

Fig 2, Brodeur et al. (2026)

But: Restricted Data Remains Unassessed

None of these studies could access restricted data — entire swaths of social science literature remain outside scope.

The Scale of the Challenge

From the AEA Data Editor’s experience (2025, 384 papers assessed):

  • 38% used data with no access restrictions — in scope for replication studies
  • 62% used data subject to access restrictions

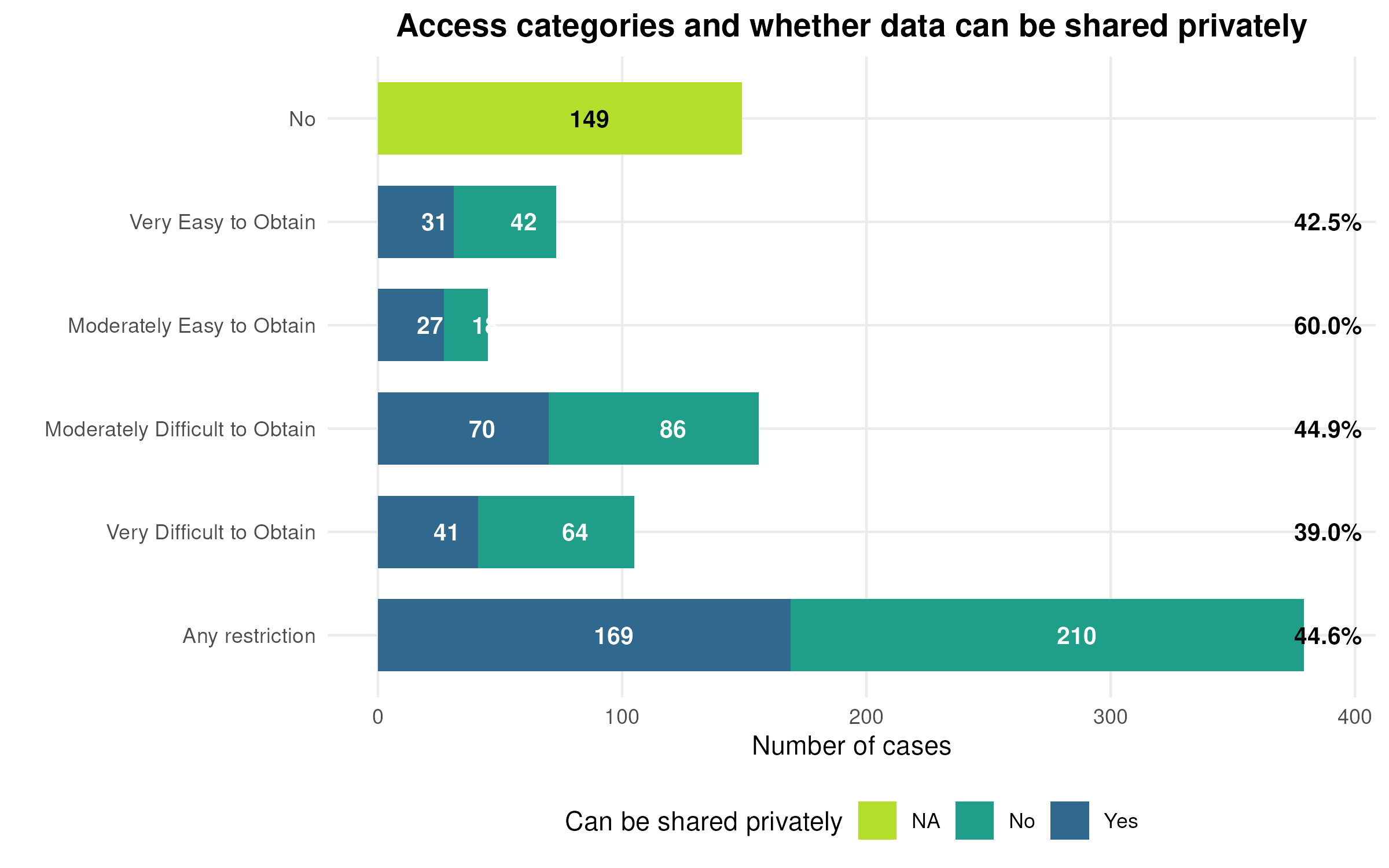

Access categories and data sharing

The Scale of the Challenge

Of those restricted papers:

  • The AEA team obtained private access to 45% of the 62%
  • Conducted reproducibility checks despite data not being in public packages

Access categories and data sharing

An information and trust problem

An information and trust problem

  • Verification at large cannot ascertain whether replication packages are reproducible.
  • Yet many of those same packages are reproducible.
  • That fact might rely on trust in data editors, or others.

The Key Question

What if it were possible to credibly demonstrate that the original execution of the computational artifacts occurred in a transparent fashion, even when data cannot be published, and is consistent with the deposited computational artifacts (code) and outputs (figures and tables)?

The Key Question

What if it were not necessary to re-run the code?

Certification

If reproducibility can be certified at the source, then:

  • Readers can trust results and focus on robustness, not reproduction
  • Researchers can convey credibility even when data cannot be shared
  • The scale of verification effort shrinks dramatically

Certification is not new

Services now provide active verification:

Service Approach
cascad Certification service, access to confidential data
World Bank Internal service, access to confidential data
Codeocean Containerized capsules with manual compliance checking

The Transparency Gap

When a reproducibility service has re-run code and issued a certificate — what actually happened?

The Transparency Gap

Questions that remain unanswered:

  • Was work done with input/influence from authors, or in isolation?
  • Was internet access available during the run?
  • What state was a database in when first queried vs. when the service ran it?
  • Was code modified (inadvertently or intentionally) by verifiers?

Absent standardized protocols or vocabularies, services remain opaque.

Readers, journals, and researchers cannot compare:

  • Codeocean vs. World Bank
  • cascad vs. AEA

The TRACE Framework

What is TRACE?

TRACE = Transparency Certified

A framework that allows inquiry into the reproducibility workflow at any stage — without requiring re-running the code.

Key insight

Document the process, not just the outputs

  • File arrangements (manifests with checksums)
  • Processing steps (software, timing, method, isolation)
  • Cryptographic signatures by certifying organizations

Result

TRACE-compliant packages can be:

  • Compared across services (Codeocean vs. World Bank)
  • Inspected both by humans and automated scripts
  • Trusted via organizational credibility chains

Generic Workflow (Before TRACE)

Consider a researcher using confidential data in a Restricted Access Data Center (RADC):

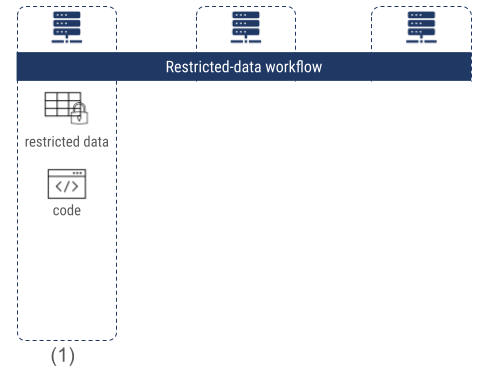

  1. Researcher gets environment with confidential data, writes code

Generic workflow with confidential data

Generic Workflow (Before TRACE)

Consider a researcher using confidential data in a Restricted Access Data Center (RADC):

  1. Researcher gets environment with confidential data, writes code

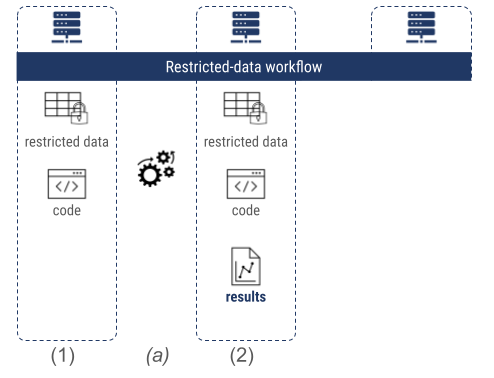

  2. Code is executed (a) → output produced

Generic workflow with confidential data

Generic Workflow (Before TRACE)

Consider a researcher using confidential data in a Restricted Access Data Center (RADC):

  1. Researcher gets environment with confidential data, writes code
  2. Code is executed (a) → output produced

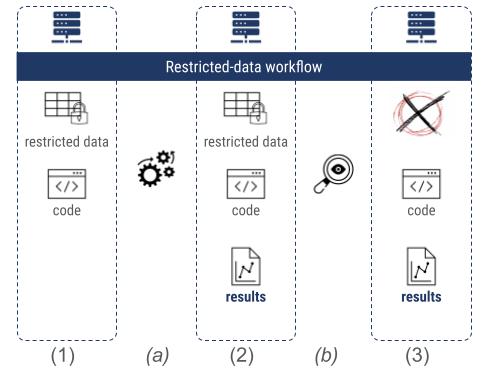

  3. Data custodian inspects, removes confidential data (b)
  4. Researcher receives code + output only (arrangement 3)

Generic workflow with confidential data

Generic Workflow (Before TRACE)

Problem:

  • The World Bank certificate states in English that this process was followed.
  • Codeocean points to an FAQ.

Neither is verifiable or machine-readable.

Generic workflow with confidential data

Making a Workflow TRACE-Compliant

Making a Workflow TRACE-Compliant

Add a few computationally easy steps:

  1. Document each file arrangement (1, 2, 3) with manifests + checksums
  2. Describe each processing step (software-driven or manual) with salient info

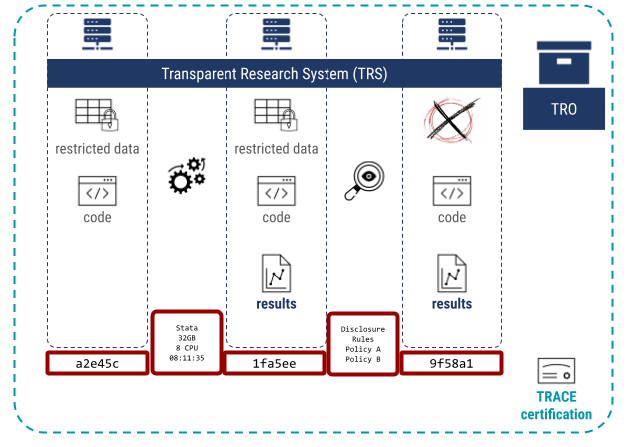

Example Trusted Research System

Making a Workflow TRACE-Compliant

Add a few computationally easy steps:

  1. Express in a controlled vocabulary (TROV)
  2. Wrap everything into a package with a cryptographic signature → creates a TRO

Example Trusted Research System

Scenarios TRACE Addresses

SCN1 — Journal reproducibility checks

Authors use SIVACOR to demonstrate push-button reproducibility before submission. Journals with and without data editors can rely on the TRACE-compliant package.

Estimated 20–40% of AEA submissions are amenable to this.

SCN2 — Certification at the source

Long-running jobs on university clusters via SLURM can be configured with TRACE-compliant queues.

Universities become producers of TROs, providing enhanced credibility to affiliated researchers.

SCN3 — Restricted access data environments

RADCs have no vested interest in any particular paper — they satisfy the arms-length requirement.

Partners at central banks (and World Bank!) are already implementing TRACE-compliant capabilities.

SCN4 — Comparing reproducibility services

TRACE provides a systematic, standardized vocabulary — machine- and human-readable — to compare Codeocean, cascad, World Bank, and others.

SCN5 — Transient resources (5/5)

When data or services used in computation may no longer be available, TRACE provides a record of what existed at the time of execution.

For instance, deprecated commercial LLM APIS!

TROV, TRO, and TRS

The Three Core Concepts

Acronym Name Description
TROV TRO Vocabulary Controlled vocabulary for describing computational processes
TRO Trusted Research Object A replication package described using TROV
TRS Trusted Research System The system or process used to create a TRO

What is a TRO?

A TRO is a replication package that contains:

  • All code used in the analysis
  • All outputs produced
  • A system description (core features of the environment)
  • Information about how files changed across arrangements
  • Organizational signatures — cryptographically signed affirmations

What is a TRO?

Important limitation

The organization only asserts that its process was followed — it does not assert scientific correctness or endorse findings.

The Trust Chain

TROs must be issued by organizations (not individuals):

  1. A journal accepts its first TRO → verifies the producing organization’s process meets its standards
  2. Journal publishes the TRO → adds another layer of credibility
  3. Other journals and researchers can rely on that credibility without further verification

The Trust Chain

This mirrors:

  • PGP “circle of trust”
  • Web PKI — chain of certificate authorities down to root CA

Institutions emitting TROs have strong incentives to maintain trust — their credibility depends on it.

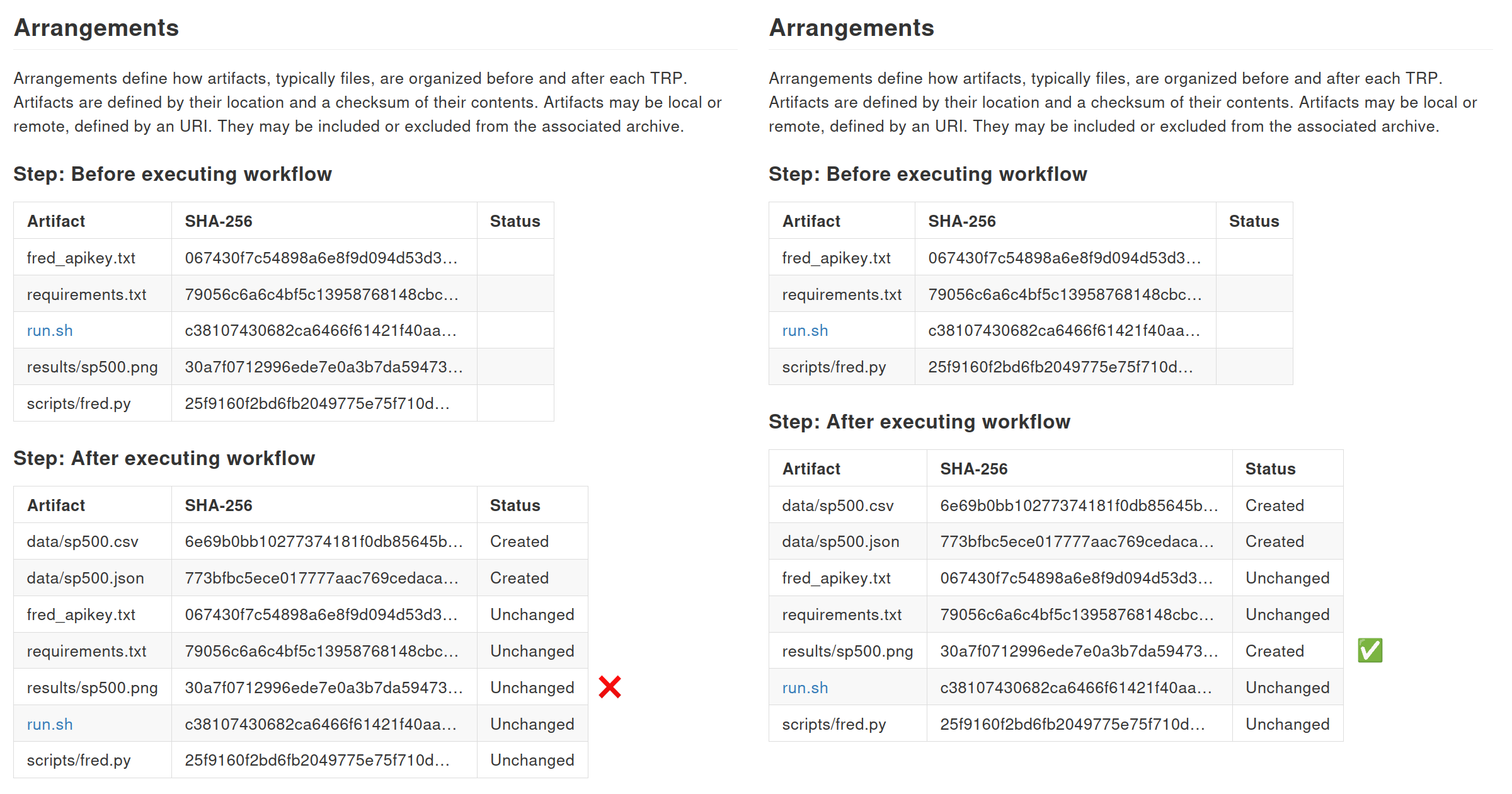

Example

What TROs Do and Don’t Do

TROs can:

  • Confirm that artifacts not present initially were created by the provided code
  • Enable principled compliance checking for data/code availability policies
  • Allow human and automated comparison across services
  • Provide file checksums that detect unauthorized modification

TROs cannot:

  • Confirm completeness of the replication package
  • Confirm correctness of the analysis
  • Replace journal inspection for policy compliance
  • Guarantee scientific validity

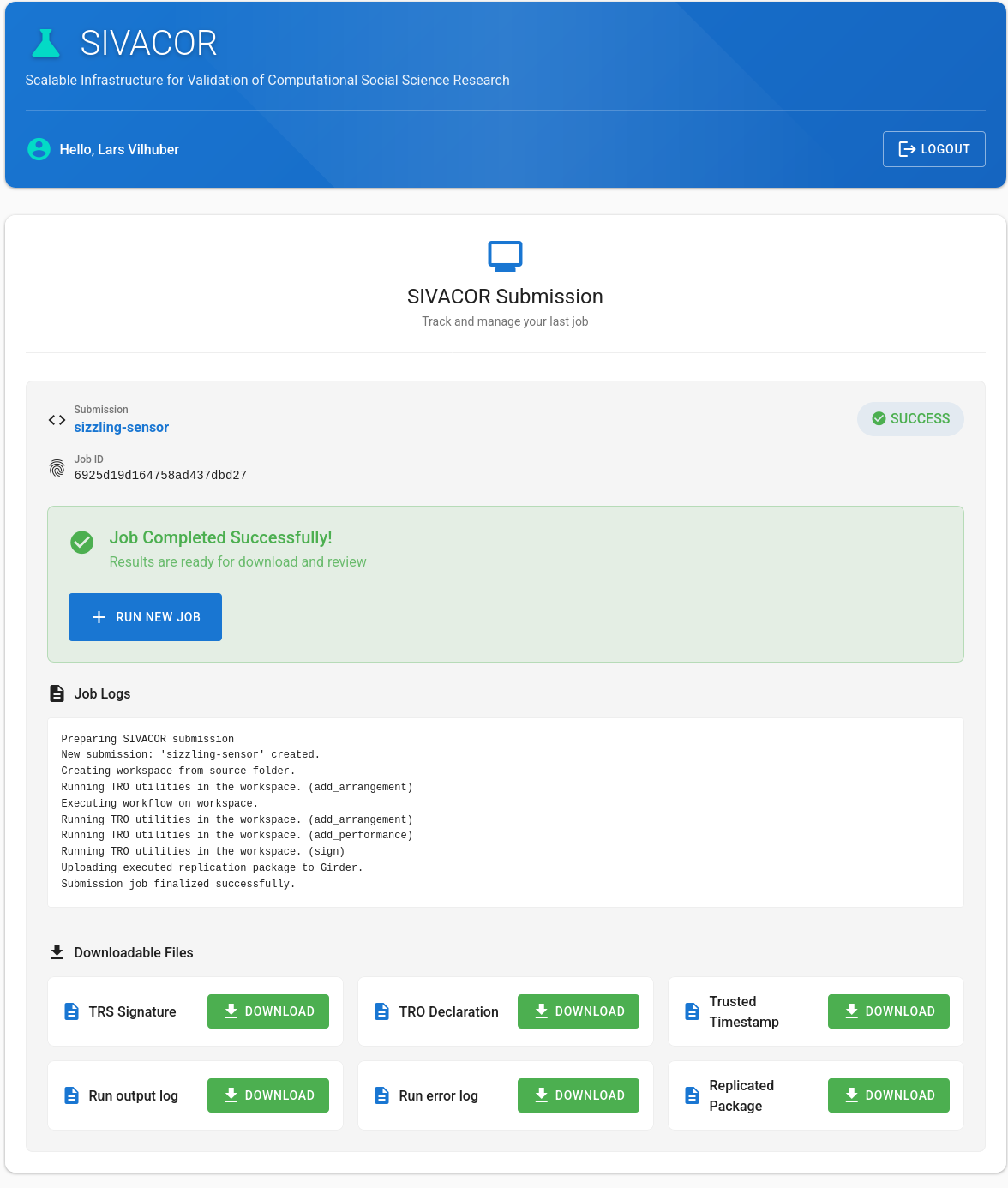

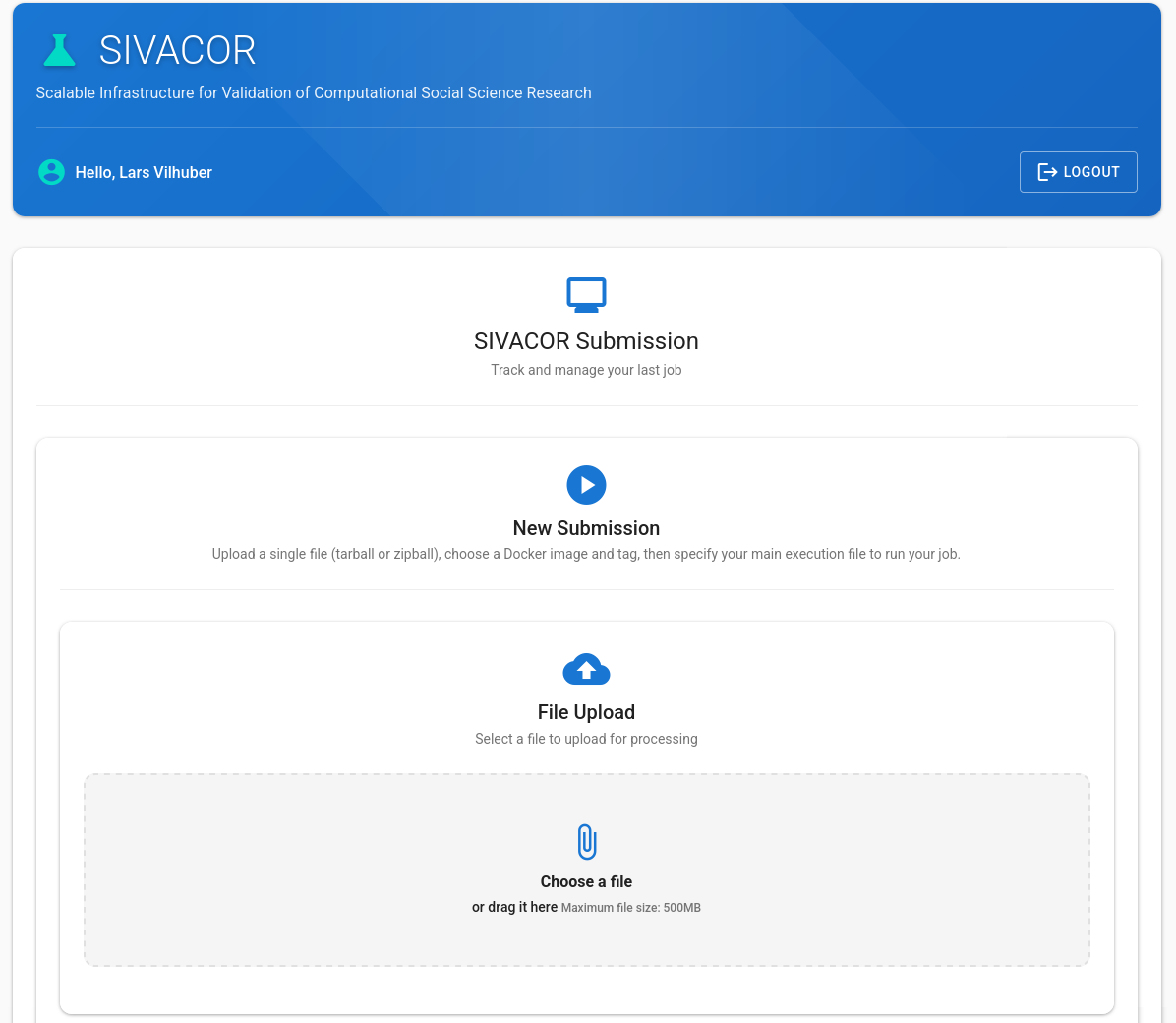

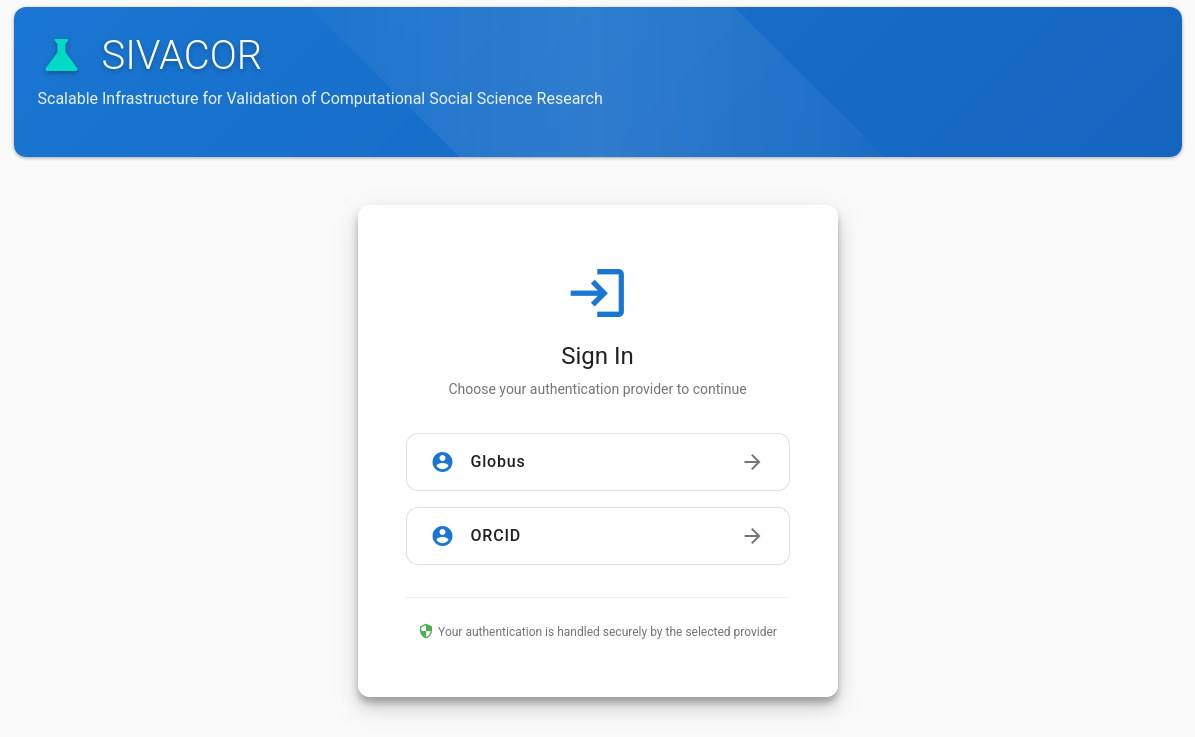

SIVACOR

The Reference Implementation

SIVACOR is the reference implementation of a TRACE-compliant Trusted Research System (TRS).

Live

Who runs SIVACOR?

A SIVACOR instance is run by a trusted organization

  • journal
  • university
  • research institution hosting other researchers

What SIVACOR Provides

SIVACOR allows authors to:

  1. Demonstrate push-button reproducibility in a transparent environment
  2. Fix minor bugs before submission — without journal resources
  3. Receive a TRACE-compliant TRO with organizational signature

What SIVACOR Provides

For journals:

  • Packages arrive already verified
  • TRACE metadata is machine-readable and comparable
  • Works for journals with and without dedicated data editors

The Bigger Picture

Universities, research data centers, and compute facilities become producers of credibility — not just reproducibility services.

Development for TRACE / SIVACOR

TRACE

Implementations bring up issues, which need review and implementation.

We need you!

Current known issues

These are in scope for inclusion in the next release of TRACE:

  • Explicit rather than implicit disclaimers (issue 37 ⏳)
  • TRO software: what created the TRO? (issue 11 ✅, included in 0.1)
  • Describe the software environment used to create an arrangement (issue 10 ⏳)

SIVACOR

Allows to demonstrate features that are relevant for TRACE in an open testable environment

Recent additions
